AQUACULTURE

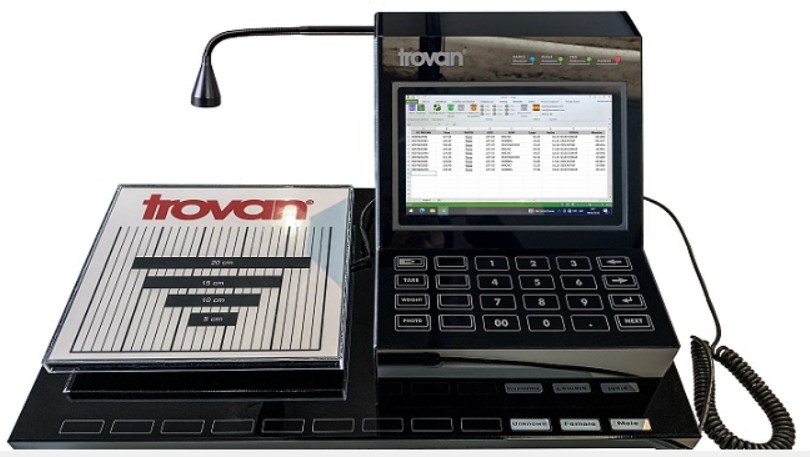

FR-200 FishReader W, w/ Integrated Scale, For Data Capture



OVERVIEW
  • Integrated data collection terminal, including 1-5 kg scale.
  • Automates capture of data on specimens including: identity weight and any other data points desired (sexing, appearance, specific deformities, results of challenge tests etc).
  • Additional external scale, fish measuring board etc. may be added as desired to customize.
  • Each DataPoint embedded in the FishReader can be associated with a value of your choice. You define, save and modify the value of each DataPoint using our user-friendly setup software.

Examples of useful data for DataPoints might include:

  • Female
  • Male
  • Very speckled appearance
  • Lightly speckled appearance
  • Not speckled
  • Deformed tail fork
  • Deformed dorsal fin

After scanning the fish, touch all relevant DataPoints to record the data that applies. No typing is needed.

  • Dimensions: 41.9 x 68.1 x 10.9 cm (16.5 x 26.8 x 4.3 in.)
  • Weight: 12.7 kg (28 lbs)
  • Protocol: TrovanUnique™
  • Features:
    • 19 customizable DataPoints +"next" DataPoint
    • Laptop with Windows 10 license
    • ZeusCapture data collection software drivers installed
    • Super rugged piezoelectric keypad
    • 3 IP67-related connectors for connecting peripheral devices (caliper, barcode scanner etc.)
